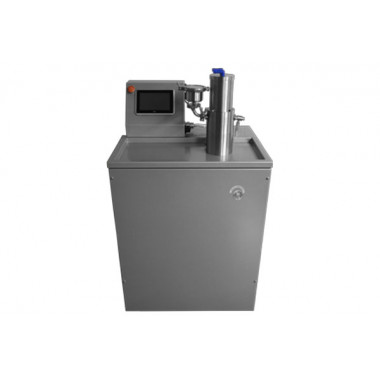

TS Series Cabinets are the ideal pilot prodution models and are versatile enough to adapt as yur needs change.

 Incorporates our unique disruption head, precise hydraulic operating and control system with an automatically supplied, continuous flowing Cell Disrupter
 Disruption pressure easily and accurately set and displayed digitally with a range of 1KPSI through to 40KPSI as standard
 Touch screen control of disruption cycle, automatic shut down when process complete
 Cell Disrupter controls peristaltic process pump for automatic supply of sample. Process pump available on request
 Disruption head mounted in stainless steel tray to avoid spillage
 Partial containment and simple externally controlled CIP
 Internal relief valve fitted for reverse flow of cleaning fluids
 Various flow rates are available depending on desired maximum pressure and power rating, alternative pressure heads available on request
 Pressure consistent and stable during disruption cycle
 Full bio-containment inlet and outlet options available on request
 Materials in contact with sample, 316L stainless steel or equivalent, synthetic sapphire, EPDM, GLFPTFE & PEEK 450G
 IQ/OQ available on request

Temperature Control: Disruption head is surrounded by unique coding jacket. Bath circulator or chiller is recommended.
