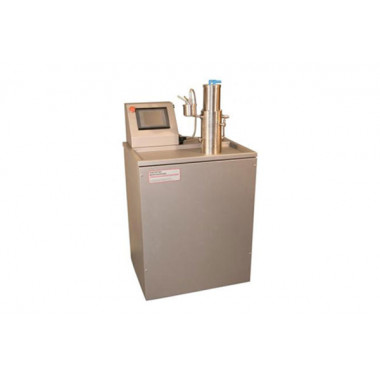

B Series and C Series Cell Homogenizer Systems

  • Favorite
LABINDIA INSTRUMENTS

Business Type:Trader

Country/Region:India

Ddu Verified

HOT Rank

6/10

Product Information

  • Certification:ISO
  • Warranty:1 year

Description

The B & C Series are the ultimate industry cell disrupters, with the power and processing ability to consistently disrupt the materials that you require.



Specifications
Power RatingFlow Rates vs Maximum Pressure

40 KPSI (2700 bar)30 KPSI (2000 bar)20 KPSI (1350 bar)15 KPSI (1000 bar)
1.1 KW100ml / min120ml / min180ml / min255ml / min
2.2 KW190ml / min240ml / min300ml / min310ml / min
4 KW405ml / min430ml / min440ml / min565ml / min

 Incorporates our unique disruption head, precise and control system with an automatically supplied, continuous flowing Cell Disrupter with CIP and SIP capability
 Disruption pressure easily and accurately set and displayed digitally with a range of 1KPSI through to 40KPSI as standard
 Cell Disrupter controls peristaltic process pump for automatic supply of sample
 Fully contained and having internal ports and drain ports to allow CIP and SIP
 The "B Series" allows the CIP and SIP to be manually operated
 The "C series" includes all valves which can be tailored to customers requirements and validated
 Materials in contact with sample, 316L stainless steel or equivalent, synthetic sapphire, EPDM, GLFPTFE & PEEK 450G
 IQ/OQ available on request
 Various flow rates depending on maximum pressure and power rating
 Pressure consistent and stable suring disruption cycle
 Temperature control and dimensions as per TS Series

Validation: Industry standard validation available on request
